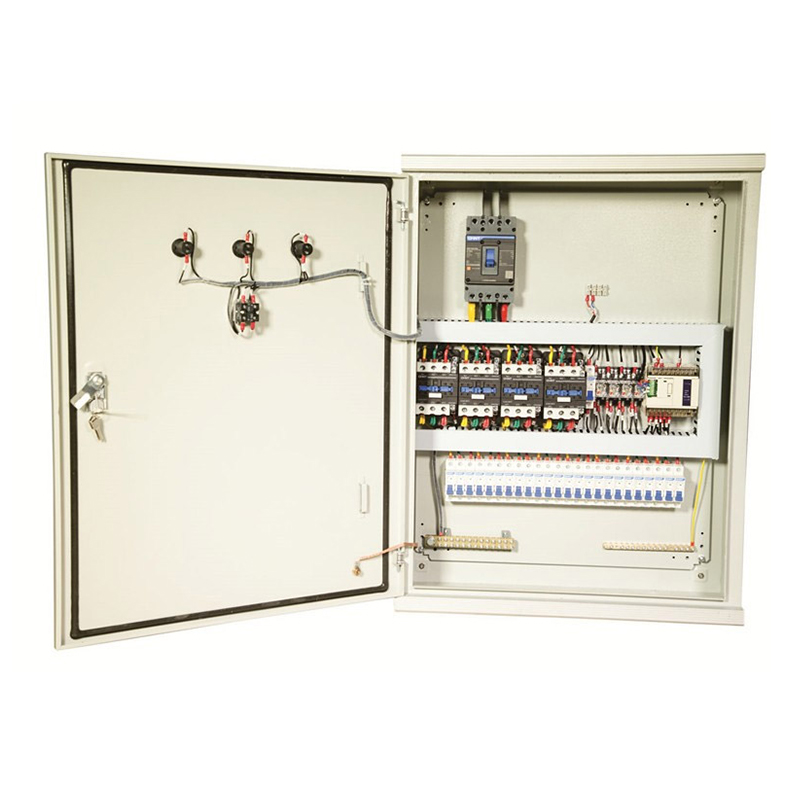

80KW 24 way PLC intelligent
80KW 24 way PLC intelligent
80KW 24 way PLC intelligent
80KW 24 way PLC intelligent


Rated power: 80KW

Main circuit breaker current: 160A

Output path/current: 24X32A/1P

Single output power: ≤ 3.5KW

Rated input voltage: three-phase five wire AC380V

Rated output voltage: single-phase 220VAC

Frequency: 50Hz

Control method: PLC intelligent+manual control

Electrical switch brand: Chint+Panasonic PLC

Box size: 600 * 200 * 300mm


The PLC intelligent power distribution box is equipped with PLC as the interlligent control unit along with monitoring sensors to reslize the external environment monitoring and real- time control of abnormal conditions. At the same time. it can

work compatibly with electronic computers for remote control

Intelligent power distribution management system: It is an automatic control equipment that integraters power distribution technology. PLC technology and now-industrialized PC contro technology.PLC intelligent box adopts the intellighent control method of 'step-by-step delayed and gradual power-on' and'distributed time-delagyed power-off',with avoids the impact of large load on the grid instandtaneously and effectively protects the electronic components of the display body, and thus extends the service life of the display
