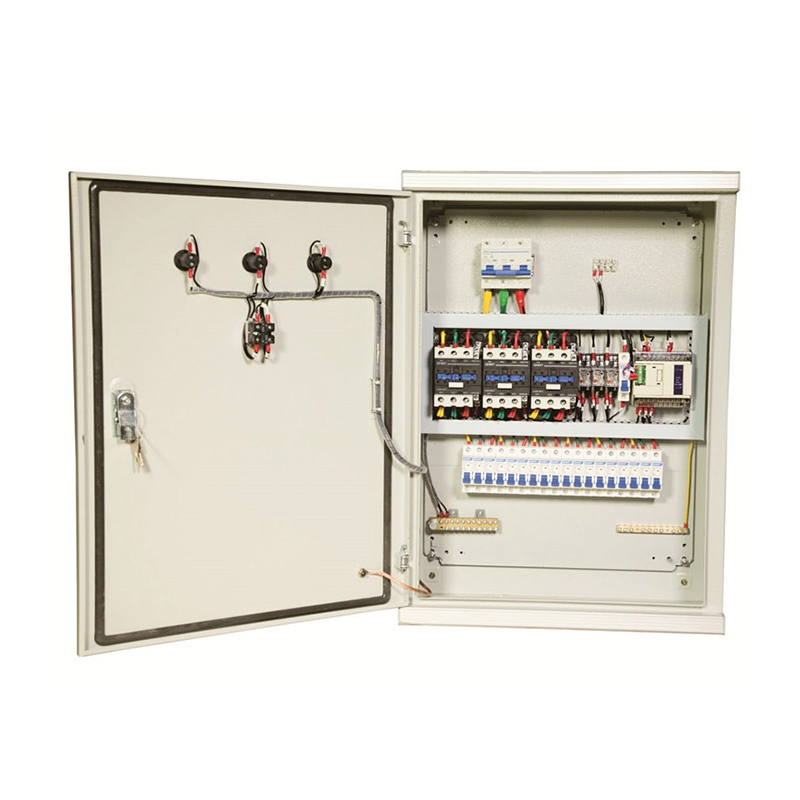

60KW 18 way PLC intelligent
60KW 18 way PLC intelligent
60KW 18 way PLC intelligent
60KW 18 way PLC intelligent

Rated power: 60KW

Main circuit breaker current: 125A

Output path current: 18 × 32A/1P

Single output power: ≤ 3.5KW

Rated input voltage: three-phase five wire AC380V

Rated output voltage: single-phase 220VAC

Frequency: 50Hz

Control method: PLC intelligent+manual control

Electrical switch brand: Chint+Panasonic PLC

Box size: 600 * 200 * 800mm


The PLC intelligent power distribution box is equipped with PLC as the interlligent control unit along with monitoring sensors to reslize the external environment monitoring and real- time control of abnormal conditions. At the same time. it can

work compatibly with electronic computers for remote control

Intelligent power distribution management system: It is an automatic control equipment that integraters power distribution technology. PLC technology and now-industrialized PC contro technology.PLC intelligent box adopts the intellighent control method of 'step-by-step delayed and gradual power-on' and'distributed time-delagyed power-off',with avoids the impact of large load on the grid instandtaneously and effectively protects the electronic components of the display body, and thus extends the service life of the display

60KW 18 way PLC intelligent
